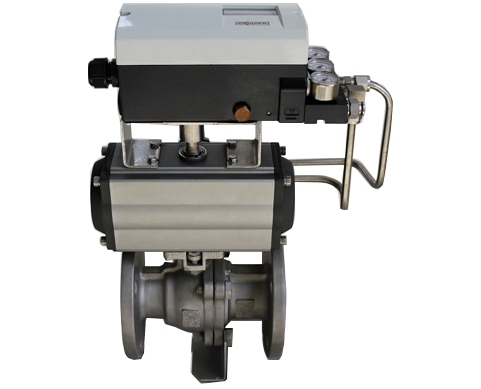

Data Sheet
Input Signal
Nominal range 4-20mA,split range configurable
between 20…100% of nominal range
Output Signal
1、range:0—0.6MPa
2、Shut-off valve:Range 0…20% of positioning signal
(if the value falls below the set valve, the positioner
immediately moves the actuator to the closing position
.
3、Output supply Boltage:24VDC
4、Used range:0—120°(rotary actuators)
0—60°(linear actuators)
5、Stroke time:0-10 seconds
6、Air supply:
Instrument air:free of oil,water and dust。
Supply pressure:0.14—0.6Mpa(Caution: Do not exceed the max, operating pressure f the actuator)
7、 Air consumption:<0.04kg/h(independent of supply pressure)
8、 Valve Action:
Direct: signal 4—20mA=position 0—100%
Reverse:signal 20—4mA=position 0—100%
Characteristic curve:
① Linear,equal percentage
② 1:25
③ 1:50
④ 25:1
9、Current Sampling Accuracy:≤0.1%
10、Tolerance band: 0.3%——10% adjustable
11、A/D conversion Sample rate:5ms
12、Environmental capabilities:
Ambient temperature:-20~60℃ for working
:-30~85℃ for storage and transport
Relative:<75%(95% for a short time)non-condensing
13、Explosion Protection:Ex ia II CT6
14、Material: Aluminum
15、Electrical connections: G1/2
Pneumatic connection: NPT1/4
Weight: 1.8KG
