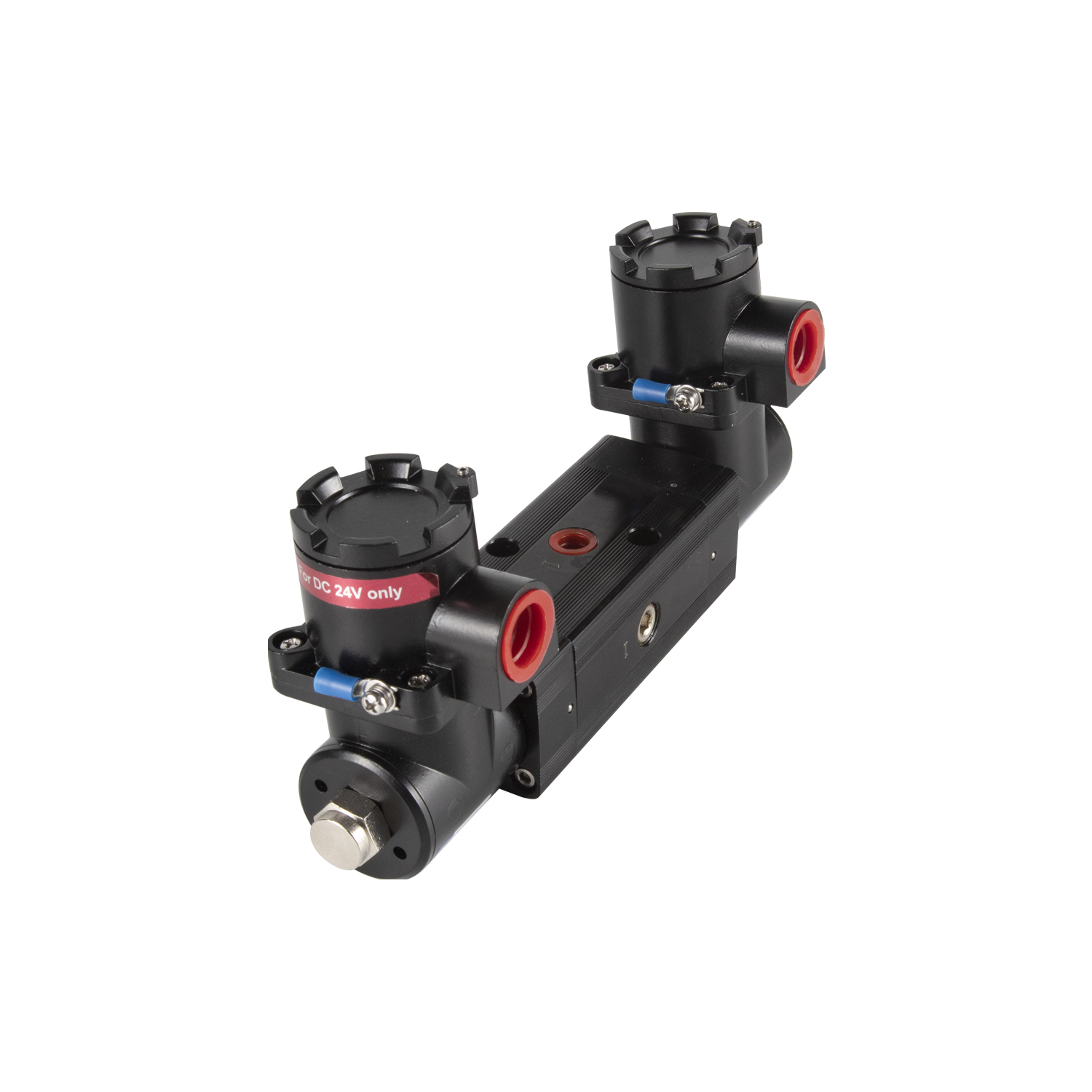

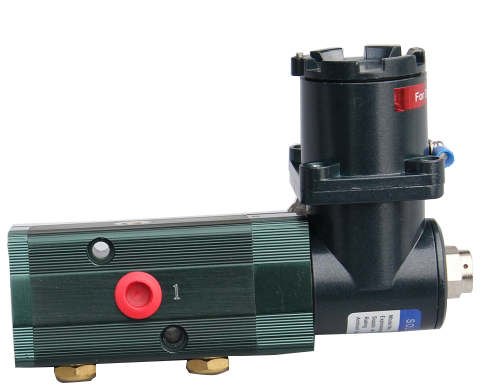

HID100 Ex-Proof Solenoid Valve

1. Features
- Rugged aluminum die-cast housing
- Convertible from 5/2 way to 3/2 way



- Rotatable valve head for optimal mounting
- Direct NAMUR mounting or screw mounting                        25.png



2.Specifications

Operating Air Pressure

1.5 – 10 kgf/

Air Supply (Max.)

15 kgf/

Operating Voltage : Current

AC 110V : 55 mA

AC 220V : 17 mA

DC 24V : 138 mA

Voltage Tolerance

±10%

Frequency

50Hz / 60Hz

Explosion Proof Class

Exd IIC T6(H2)

Operating Ambient Temperature

-20 ~ + 70

Flow Capacity (Cv)

0.9

Mounting Configuration

NAMUR or screw interface

Pneumatic Connections

 NPT 1/4

Electrical Connection

NPT 1/2

Coil Insulation Grade

Class H

Duty Cycle

100%

Weight

0.9kg






3.Installation

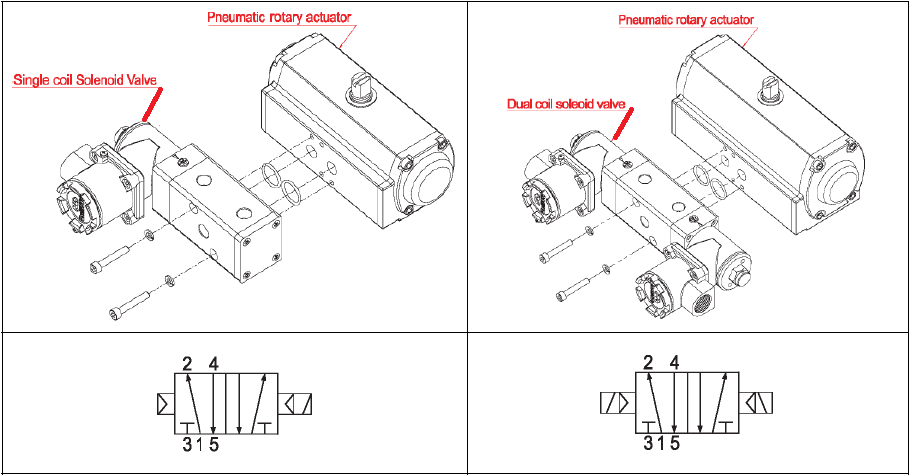

As the HID solenoid valve is designed for NAMUR mounting pattern, it can be
mounted directly onto the pneumatic actuator without an additional piping. Also,
as it has PT 1/4 or NPT 1/4 threads inside of the connections as standard, the
screw interface is available.












4.How to Order :

HID100

Mounting

Coil:

Operating Voltage

Connections                                       (Pneumatic -Electrical)



1:NAMUR

S:Single

1:220V AC

P:PT1/4



2:Screw

D:Dual

2:110V AC

N:NPT1/4



3:24V DC





Eg:HID100 1 S 1 P: (Namur single coil, 22v AC,PT1/4)
