ITS310S Limit Switch Box

ITS310S Limit Switch Box

  • Category:Limit Switch Box
  • Views:
  • Release Date:2020-08-10 19:07:20
  • Product overview
DESCRIPTION

The ITS-3101 limit switch box with position indicator provides open to close switch signaling and continuous visible rotational degree monitoring of quarter turn valves. The   rugged and compact design is best suited for small ball valve assemblies, or any place where space is limited

FEATURES

1.    Explosion proof ExdIICT6

2.    Weather proof IP67(NEMA4,4X)

3.    Compact and Beautiful Design   S.S304 Materail

4.    Bolts on Visual Position Indicator  Secure waterproof

5.    "Quick-Set" Cam  Spring loaded splined cam
No need to adjust again after initial setting
Easy setting without tool

6.    Multipoint terminal strip;Standard 8 points and enough strips for connection

7.    Dual cable entries,2X3/4NPT (Standard), PT3/4,PF3/4(Option)

8.    Captive cover bolts;No worry to loose bolts while cover opens

9.    Easy mounting;NAMUR standard stainless steel shaf and bracket

Order Symbols

ITS-3 1 0

5   Shell Type

Ex-proofEx d   CT6)、Weather ProdtctionIP67

1 Switch Type

Mechanical   Type:  1  2-SPDT    2  3-SPDT  3   4-SPDT 4  2-SPST

5   2-DSDT    6  2-SPDT+Potoniometer  7    2-SPDT+PTM4-20mA

Proximity   Sensor Type 8 P&F    NJ2-V3-N

0 Bracket

030x80xH   1 (30x130xH)

SPECIFICATION


Model

ITS-310

Standard

Option

Shell Type

Ex-proof Ex dCT6 Weather ProtectionIP67

Ambient Temp

-25~    +85

Conduit

2-3/4NPT

PT3/4  PF3/4

Terminal   Strips

8

9~24

Position Indicator

0~90°

0~180°

Open-Yellow      Closed-Red

Switch Rating

Mechanical Type

SPDT

A C

125/250V 15A

DC

25OV 15A

DPDT

AC

20A,125/250V;1HP,125V;2HP,250V

Proximity   Sensor Type

0~25VDC

Pontoniometer

1KΩ,    5KΩ,   10KΩ

Feedback

4~20mA(20~4mA)

Material

S.S 304

Weight

3 kg

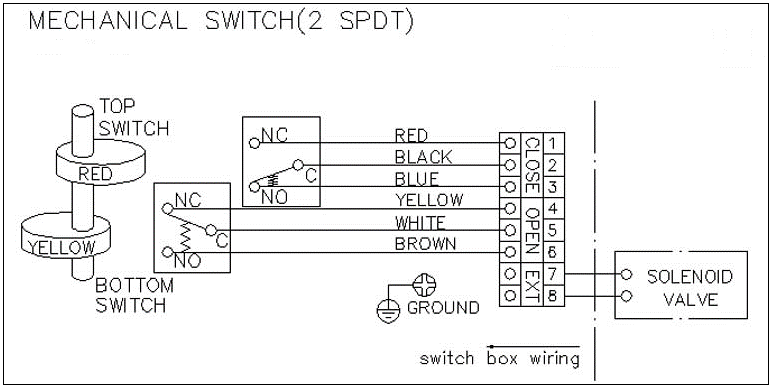

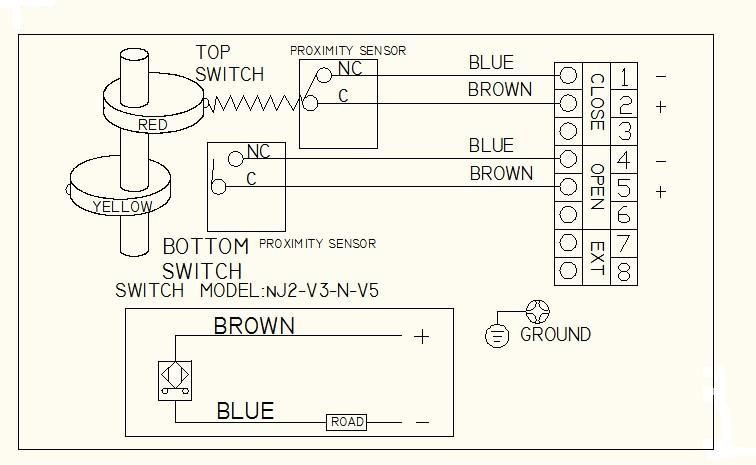

 Wiring

Label
